Référence : 134-OSD-PIN

Micro CCD 480 lines camera with OSD and pinhole lens

Short description :

  • CCD 1 / 3 Sony Super HAD 480 lines
  • Resolution 752 x 582 pixels
  • complete Setting by OSD menu
  • Full image Setting
  • Pinhole Lens

Description

Wired miniature camera with a SONY CCD sensor 480 lines of high definition color.
HAD system is a rigorous process that improves the quality and sensitivity of the images taken by the Sony CCD sensor.
With its Pinhole Lens, the camera is concealable behind a hole 1 to 2 millimeters.

This mini camera is sold with his foot tilt allowing you a perfect fit for his position.

If you want to empower our micro camera, we offer a 220/12 volt transformer option.

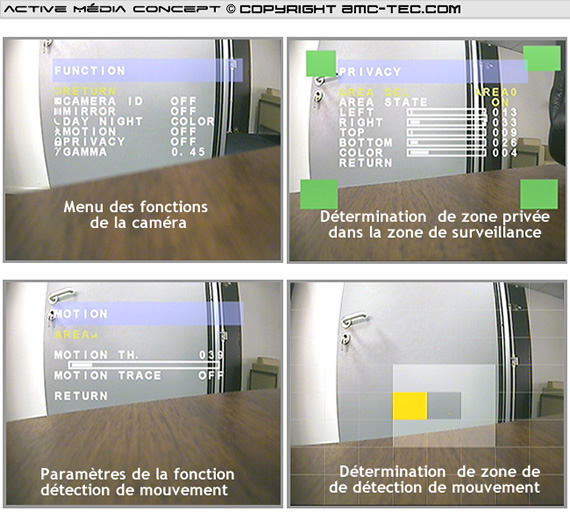

The peculiarity of this camera is to have an internal menu to adjust various settings according to your wishes:
- Brightness
- The compensation cons Updated
- Gain
- The white balance
- Contrast
- The sharpness
- Several function as: effect mirror / jour-nuit/détection Motion / gamma / private zone

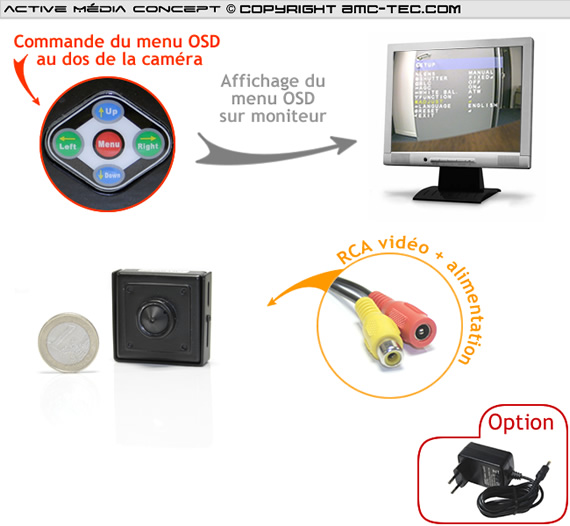

To make these settings simply connect the camera to a monitor using an RCA cable male.

Caractéristiques

 Signal video  PAL
 Capteur micro camera Super HAD CCD
 Pixels effectifs 752 x 582
 Système de scan 625 lignes
 Système de synchronisation  Synchronisation interne
 Résolution 480 lignes TV
 Correction Gamma USER / 0.05 /0.15 / 0.20 / 0.25 ... jusqu’à 1.0
 Illumination minimum 0.5 Lux
 Controle du gain (AGC) 000 à 255
 Compensation de contre-jour (BLC) 000 à 255, sélection de zone
 Balance des blancs  4 modes / manual / automatique
 Shutter électronique 1/50, 1/120, 1/250, 1/500; 1/2000, 1/5000, 1/10 000, 1/100 000
 Image miroir paramétrable
 Jour/nuit paramétrable
 Sortie vidéo 1 Vp-p 750 MS,negatif
 Consommation  120 mA
 Température de fonctionnement -10°C ~ +50°C
 Température de stockage  -20°C ~ +60 °C
 Dimension (mm) camera 34 x 34 x 25
