Référence : NAV-TRACKING-600

Touchscreen communicating with integrated mapping et real time Gps tracking Set

Short description :

  • Direct communication with the GPS via SMS
  • Magnetic waterproof up to 20 days battery backup
  • 32 satellites used precise GPS position up to 5 meters
  • No subscription to a platform of Internet geolocation
  • Follow the GPS tracker, date time and location-based automatic mapping
  • Travel Alert & location of our GPS tracker
  • Calculates the automatic route to the GPS
  • Suspend the tracker remotely via SMS
  • 4.3 inch touch screen mobile & autonomous
  • GPS & Mapping vector FRANCE / EUROPE integrated
  • Export of the historic position to Google Earth
  • Do not use GPRS, SMS only for international use simple
  • Tri-band GSM for international communication with our GPS Tracker
  • Can be used as a standard GPS navigation
  • Update patch by evolving self executable

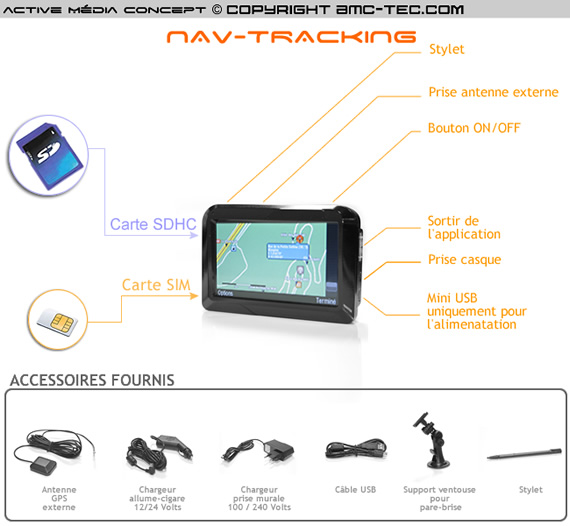

A partnership between AMC and Inovmobile technology, the NAV tracking is a standalone touch screen integrated with a mapping that communicates directly with its SMS GPS beacon LA-TR-600.
This kit allows geotag of the tag without GPS or GPRS subscription package, without server without interface or other location-based web platform.

In addition, the NAV TRACKING will be easier to geolocalize the GPS tracker in France or abroad because the GSM network is much broader than GPRS.

The GPS tracer TR-LA-600 is a GPS real-time multifunction high autonomy: 15 to 20 days.
This traker is waterproof, small size and has four small magnets. The installation of the tag is very convenient and easy.

The NAV TRACKING and GPS tag you with possibility:

The NAV TRACKING be evolving through these updates auto patch executable.


Touch screen
 Module  Tri-band GSM/GPRS
(900/1800/1900 MHz, class 10)


High sensivity GPS/AGPS
 Antenna intern GSM/GPRS , GPS
GPS antenna High performance
 Battery Life 4 hours
 Battery Built-in Li-Ion recheargeable
 Dimension 123 x 83 x 24 mm

Built-in vectorial France ou Europe

 GPS trackerTR-LA-600
 GSM Antenne GSM tri-band module  (GSM 900 - 1800 - 1900 MHz)
 GPS Antenna Haute sensibilité intégrée
  IP Classification IP 56 waterproof
 Number of magnet 4
 Battery life jusqu'à 20 jours (suivant paramètres)
 Dimensions (mm) 68 x 47 x 26
 Weight 110g
