Référence : DVR509-BU618

Micro spy caméra and audio vidéo mini camcorder 720 x 576 px on SDHC card

Short description :

  • Record high-resolution (FULL D1) 720 x 576 pixels at 25 fps
  • Screw camera 420 TV lines
  • Recording Function motion detection by a simple trigger on your microphone recorder
  • Saves 20 seconds on your SDHC card micro DVR before motion detection starts
  • Micro DVR with LCD TFT 2.5 "920 x 240 pixels High resolution
  • Position loop recording on your recorder microphone
  • Ability to take pictures with your micro DVR recorder
  • Range of Micro recorder continuously recorded: 3 hours
  • Timestamp on the records of Mini DVR
  • Auto Power Programmable Micro Recorder
  • Job Information by vibration
  • The recorder supports micro SDHC cards up to 32GB
  • Take the reading of media (picture, movie or music)
  • Microphone and speaker integrated into the microphone recorder
  • Battery 1300 mAh Li-Ion replaceable / rechargeable
  • Micro Recorder's Size: 79 x 56.5 x 21 mm

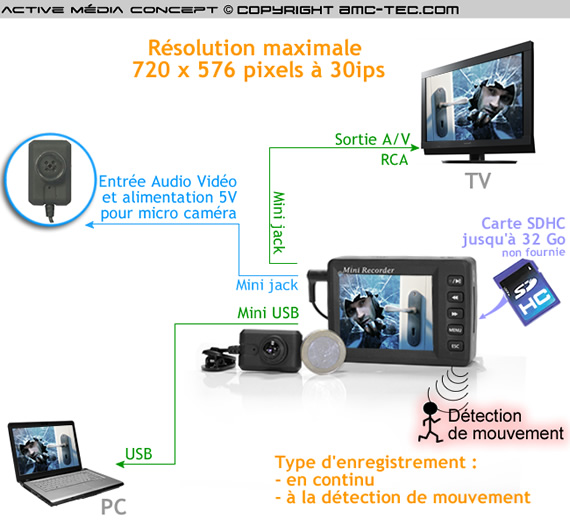

This kit micro digital recorder equipped with its micro camera button / screw allows an audio / video with a maximum resolution of 720 x 576 pixels up to 30 frames per second Standard AVI format, recognized by all media players (Windows Media Player , Quicktime, VLC etc) The registration of files is SDHC card up to 32GB to introduce the side of your LCD micro DVR recorder.

This micro hidden camera is equipped with a sensor 420 TV lines. It operates under a brightness minimum of 0.5 lux. The main advantage of this camera is its miniaturized design platform (34 x 22 x 10 MM) and its objective threaded type "pinhole (pinhole), allowing you to adapt these tips" screws or buttons as usual (supplied).

Its Micro Audio is in front and makes his decision all your events. This mini camera is perfect for hiding behind a shirt configuration "button" or for example, behind a complaint, a wooden board, in configuration "saw" a rack etc..

Different functions are our micro DVR-509 has its associated mini wired camera system BU618 exceptional in terms of performance and recording quality at a price defying any competition, some free below.

Our kit microphone mini camera recorder more works in several ways including motion detection mode or directly to ECN continuous recording, if you opt for our motion detection kit recorder digital camera more micro resume event detection movement with a near record of 20 seconds before the intrusion.

With its small size (79 x 56.5 x 21 mm) our kit spy camera recorder can conceal or do I care about. Our micro recorder accompany the mini camera can also operate in a loop, its battery backup is 3 hours of continuous recording in the studio testing, there is a timestamp, an inlay indelibly the date and hour a number of counter on each recorded image of mini DVR recorder to help you in your search for your records and forensic applications, investigation, evidence etc. etc..

Other helpful features like the ability to take pictures with your micro DVR recorder, the information functions vibration, the programmable sprinkler kit micro camera recorder, a microphone and speakers integrated into our digital micro recorder, memory SDHC card up to 32 GB


 Digital Screen 2.5 TFT LCD
 Color System PAL / NTSC (auto)
 Screen resolution(pixels) 960 x 240
 Recording Format AVI
  Recording Resolution   720 x 576
720 x 480
640 x480
320 x 240
 Battery life in continuous recording 3 Heures
 Motion detection oui
 Cycle Recording oui
 Duration of the videos in continuous recording 10 / 20 / 30 min
 LCD Off 1 / 3 / 5 min / jamais
 Auto Power Off 5 / 10 / jamais
 Vibration Function ON / OFF


 Interne  256 Mo
Carte SDHC de 1 Go à 32 Go
 Lecture Vidéo et audio
 Lecture de média Photo / Musique / film
 Supported media

Photo : JPG, JPEG
Musique : MP3 / MP2.5
Film : MPEG-1 / MPEG-4 / AVI / ASF / ADPCM

 Frame Rate 30 / 25 / 15 ips
 Memory consumption 720 x 576px @ 30 ips : 1 heure pour 1.2 Go
320 x 240px @ 15 ips : 1 heure pour 155 Mo
 USB USB 2.0
 Recorder Power supply (USB) DC 5V 1A
 Battery capacity 3.7V  1400 mAh
 Camera power supply (output jack A / V out) DC 5 V 200 mAh
 Input Jack A/V cordon adaptateur
mini-jak(2.5mm) / 2 RCA femelles (1 video, 1 audio) + sortie 5V
 Sortie Jack A/V

cordon adaptateur
mini-jak (2.5mm) / 3 RCA mâles (1 vidéo, 2 audio)

 Language Anglais / Chinois / Russe
 Capteur 1/3” couleur CMOS
 Définition horizontale 420 TV Lignes
 Illumination minimum  0.5 LUX
 Dimensions  34x22x10mm
 Alimentation  DC 5V 150mAh
