Référence : MD-600-IR

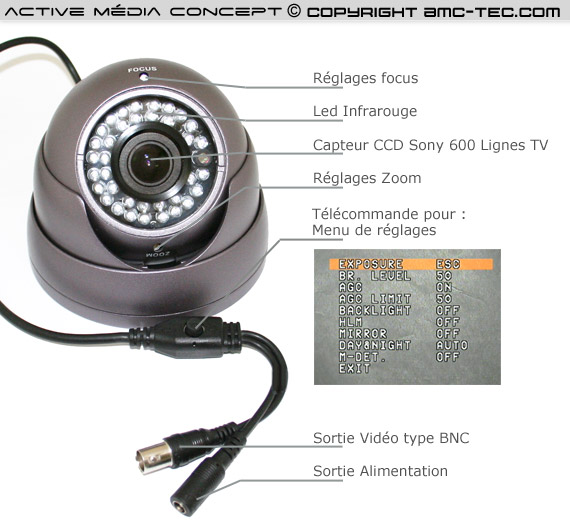

Color Dome Camera Sony CCD Multi Directional Infrared 600 Lines

Short description :

  • Sensor 1 / 3 Sony CCD 600 lines
  • 36 IR LEDs
  • Dome Multi-directional
  • Infrared sensor up to 30 meters


Our mini dome has a Sony CCD sensor 600 TV lines, the 36 LEDs lit giving it a range of up to 30 meters apart, for a minimum illumination of 0 lux.

The fixed dome camera is a professional high performance for the monitoring of indoor and outdoor under shelter, our discreet and compact mini dome offers effective protection against attempts at vandalism.

Supplied with BNC / RCA, his ankles and screws, our dome is very easy to install ceiling or wall you will be able to manually steer toward the target to shoot thanks to its multidirectional.
This mini dome camera is wired ideal for monitoring shops, offices or warehouses.

All faith you can make some adjustments, contrast, exposure ... thanks settings menu and camera connected to the remote video surveillance.

The Wide Dynamic Range (dynamic range) is a feature offered by this camera, which allows the integration of management techniques varied lighting conditions in a scene.

In the extremely bright or dark spots or if cons-day when a person is faced with a clear window, a regular camera produces an image on which the objects of dark areas are barely visible. WDR solves this problem through techniques such as using different exposures for different objects in a scene so that objects of light and dark areas are visible.


 Video system PAL
 Sensor  1/3 SONY CCD
 Resolution 765 (H) x 596 (V)
 Horizontal Resolution  600 TV Lines
 Infra-Red 36 Leds
 VIseo output 1V-p 75 Ohms Negative
 Power supply DC 12 Volts +/- 10%
 White balance Automatic
 Gain Control Automatic
 BLC (back light compensation)  Automatic
 S/N Ratio  more than 54 db
 Gamma  Correction 0.45
 Minimum   0 lux ( leds allumées)
 Power consumption 100mA IR Off
 Working temperarture  -10° à + 50°
 Lens Focal variable : 4 - 9 mm
 Angle Horizontal: 4mm, 61° - 9mm, 29.9°
Vertical: 4mm, 48° - 9mm, 22.3°
Diagonal: 4mm, 73° - 9mm, 36.9°
 Diamètre du Dôme Ø 131mm x 93 (H)
 Weight 0.850g
