Référence : KIT-CAR-500

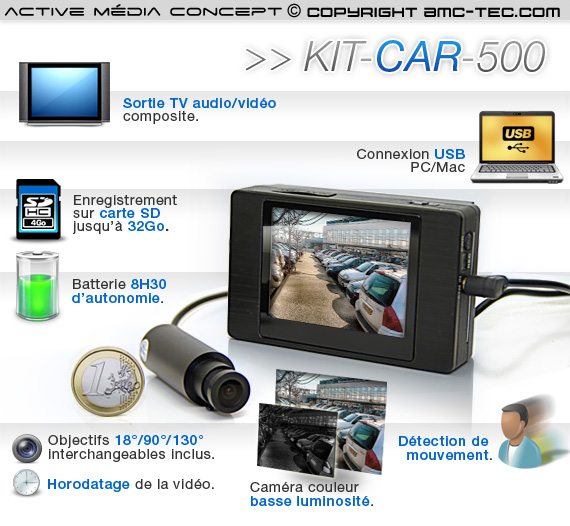

Kit Micro DVR mini camera with long battery paluche 550 lines low light wide angle motion detection

Short description :

  • Complete kit to install "special anti-vandalism / damage auto"
  • High resolution recording (FULL D1) 720 x 576 pixels at 25 fps
  • Micro Video Camera Color 550 Lines paluche low brightness 0,005 LUX
  • Supplied with 3 lenses with different angles 90 ° / 135 ° / 18 °
  • Long battery life up to 17 hours 15 minutes with the optional battery "BA69"
  • 4400 mAh battery for autonomy until 8 hours 30 minutes
  • Function audio / video motion detection or continuous
  • Function loop recording mode with re writing
  • Superimposing the timestamp on the records (on / off)
  • TFT LCD 2.4 "High resolution integrated
  • Memory 4GB SDHC card for up to 32 GB
  • Micro recorder small size: 85 x 55 x 17 mm
  • Recorder optimized for use 24/24 and 7 / 7
  • Self-powered video camera


Video surveillance kit, specially designed against vandalism and damage vehicles, or other sensitive places equipped with electricity and low luminosities.

This kit includes a micro camera type paluche 550 TV lines color
low brightness minimum 0.005 lux, delivered with 3 goals with different angles:

- The goal of '18 ° 'angle of view gives you a range of 15 to 20 meters with the best possible resolution.
- The goal of '90 ° 'angle of view is originally fitted and allows you to have a global viewpoint.
- The objective of '130 ° 'angle of view gives you a wider field of vision.
The camera is small paw 65mm in length to 19 mm in diameter, with a weight not exceeding 20 grams, the camera is self powered by the recorder so no need extra power cable installation.

The professional digital recording microphone is autonomous with a long battery autonomy (4400 mAh battery) until 8:30 in continuous recording.
An optional 6900 mAh battery (ref.BA-69) will give you continuous recording until 5:15 p.m. self!
The recording resolution of the micro video recorder is 720 x 576 pixels at 25 frames per second, recordings were made on an SDHC card up to 32GB. A 4GB card is included.

The digital recorder has a color LCD TFT 2.4 "high resolution is integrated which allows you to adjust and to fit the camera paluche 550 lines low light connected to the recorder.

Small (85 x 55 x 17 mm), micro DVR recorder operates at the "motion detection" or continuous recording, the recording can be done with a loop mode rewrites SDHC memory card.
It is a professional recorder kit plus a micro camera paluche low light very efficient, easy to use thanks to its intuitive menu (menu is accessible only with the infrared remote).

Our kit can be hidden in a place where there is little light, with long battery life, it uses a lithium battery up to 8:30 of battery life.

You can download video by clicking the image below :


Micro recorder DVR-500-L
 Screen DVR 2.4 TFT LCD
 Systeme color display PAL / NTSC (auto)
 Recording Format .AVI
 Recording resolution 720 x 576 pixels
 Frame rate 25 fps
 Battery life continuous recording 8 Hours 30 minute
 Recording mode Motion detection or continuous
 Loop Recording Yes, on/off


SDHC card 1 Go up to 32 Go
 Play Video and audio
 Play media  film
 Media format agreed


 Memory consumption 1 hours = 780 Mo
 USB USB 2.0
 Power (USB) micro DVR DC 5V 1A
 IR receiver Yes , up to  5 m
 Loading time about 4 hours 30 minutes
 Battery capacity 4400 mA
 Language English / Chinese / Russian
 Dimensions 85 x 55 x 17 mm
 Weight 122 grammes
Micro Camera Paluche 550 Lignes
Sensor type  SONY 1/3 CCD ex view couleur
Min illumination 0.005 LUX
Number of Pixels 795 x 596 pixels
Resolution  550 lines TV
Video output  1 [Vp-p] Composite 75Ω
White balance  auto
S/N Ratio higher to 50db
Gamma ∂=0.45
Electronic shutter  PAL:1/50-1/100,000(sec) automatique
Lens mount 90°, 130° et 18° in accessory
Consumption about 150 mA
Operating temperature  -10˚C ~ +50˚C
Dimensions 65  x 19 mm (diametre)
Weight  20 grammes (caméra seul)
Supply voltage 5 Volts
