Référence : CW-700-IR

Wired Camera Waterproof 1/3 SONY EXview HAD CCD II 700 line color WDR and infrared

Short description :

  • Waterproof Outdoor Camera
  • Sony CCD Color 700 lines
  • Resolution 1020 (H) x 596 (V)
  • Minimum illumination 0.001 lux (without IR) and 0 LUX with IR
  • Objective variable 2.8-10 mm 27 ° 98 °
  • Infrared range up to 50 meters
  • Management backlight (Wide Dynamic Range)
  • Sensor Settings for Remote & OSD
  • Camera Outdoor IP66 weatherproof

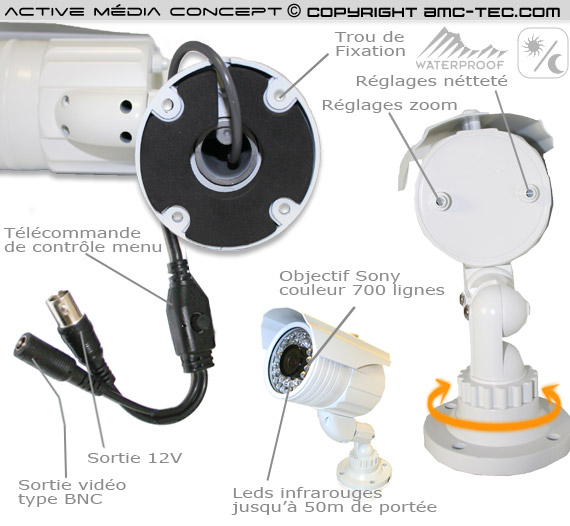

  • Adjustable foot camera cable invisible


 This camera is wired with a Sony CCD 700 lines of color excelente quality.
It has a night vision system (0 lux auto switches to infrared) with a range up to 50 meters.

Wide Dynamic Range thanks to the exhibition for the sensor will be automatic.

It is ideal for video surveillance outside (and inside) because it is waterproof and withstand even the weather.

Easy to install, it comes with its original transformer 220 / 12 volts and its supporting leg recliner that you can position the camera from below or above.

The Wide Dynamic Range (dynamic range) is a feature offered by this camera, which allows the integration of management techniques varied lighting conditions in a scene.

In the extremely bright or dark spots or if cons-day when a person is faced with a clear window, a regular camera produces an image on which the objects of dark areas are barely visible. WDR solves this problem through techniques such as using different exposures for different objects in a scene so that objects of light and dark areas are visible.


 Video system PAL
 Sensor  1/3 SONY Exview HAD CCD II couleur
 Resolution 976 (H)× 494(V)
 Horizontal Resolution  700 TV Lines
 Infra-Red 36 Leds to 50 meter lenght
Synchronous System Internal, negative sync.
Scanning System 2:1 interface
 Video output 1V-p 75 Ohms signal composite
 Power supply DC 12 Volts +/- 10%
 White balance Automatic
 Gain Control Automatic
 BLC (back light compensation)  Automatic
 S/N Ratio  more than 48 db
 Gamma  Correction 0.45
 Auto Electronic shutter 1/50s~1/100,000s
 Minimum   0 lux ( leds allumées)
 Power consumption 700mA IR Off
 Power DC12V 700mA
 Working temperarture  -10° to + 45°
 Lens Focal : 2.8 - 10 mm
 Diamètre du Dôme  259 (W) x 159 (H) x 104 (D) mm
 Weight  1800 g
