Référence : XTC-12M-GBS

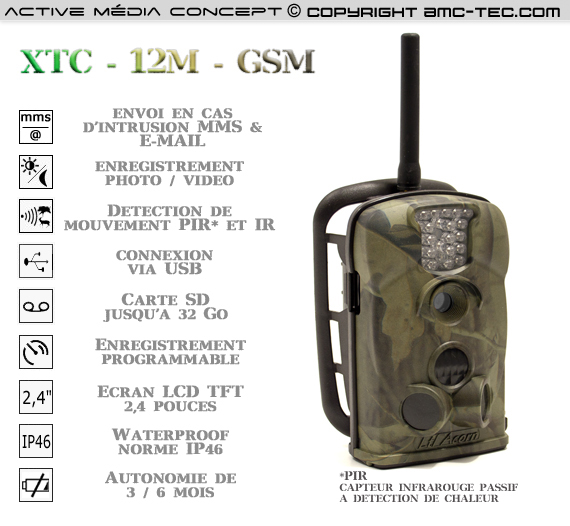

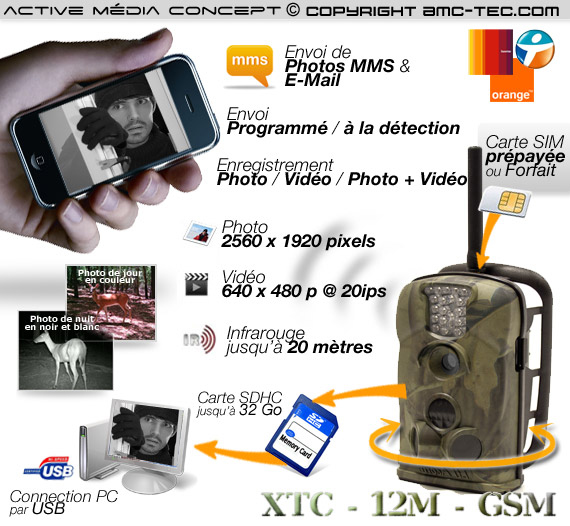

Full pack Camera 12 MP Waterproof Infrared autonomous solar system & anti-vandalism

Short description :

  • Complete system with stainless steel case waterproof camouflaged 12MP camera phone and solar charger
  • Stainless steel case comes with cable fixing Python Secured by padlock
  • Solar charger with battery 1500 mAH integrated
  • Works without GSM subscription (prepaid card or package)
  • Waterproof IP54
  • Infrared flash up to 20 meters range
  • Motion detection alert via MMS & Email
  • Video recording, photo or video + photo on SDHC card
  • Sensor detection angle of 100 ° PIR
  • Colour LCD TFT 2.4 "
  • Up to 1 year automonie in standby mode (without detection)
  • HD picture resolution up to 4000 x 3000 pixels
  • Video resolution up to 640 x 480 pixels @ 20 fps
  • MMS Photo Resolution 640 x 480 pixels
  • Sending MMS programmed: Timer & Time Lapse
  • Send SMS at low battery
  • Ultra-fast trigger time 1.2 seconds
  • Overlay picture with Date, Time, Temperature & Ephemeris
  • Memory protection for encrypted password
  • Compact size: 115 x 57 x 30 mm


GSM surveillance camera video wireless

Video surveillance camera GSM wireless for professionals and individuals. XTC-12M camera-phone is awesome with its compact system integrates an HD camera, a GSM module and a system of video recording and photo on SDHC card. The CMOS sensor HD camera is 12 megapixels, it provides images with a resolution maxiamal HQ 4000 × 3000 pixels and a resolution of 640 X 480 Videos at 20 frames per second. The recording system records video and photos on SDHC card up to 32 GB built-in GSM module in the rack stack can send picture MMS, real-time detection or by request or program.
The XTC BOX is a steel protective weather-resistant, color camouflage, making it a true anti-theft for your camera. Supplied with cable fixing python Secured by padlock.

Waterproof IR Camera and Flash

Near the sensor is invisible infrared LEDs, allowing detection at a place without light light (flash) 1 / 4 seconds. The increased maximum LED  are infrouges 20 meters.
A light sensor will automatically switch day / night mode.
The unit is waterproof with an SPF of 54 is protected against dust and protected against splashing water. Its temperature is extreme ranging from -30 ° C to 70 ° C.

Motion sensor for detecting an even more accurate

By the motion sensor PIR (pyroelectric infrared sensor) detects each abrupt change of heat and movement. Three sensors on the camera can detect 100 ° of viewing angle and up to 20 meters.
Time déclenchment sensor will be accelerated up to 1.2 seconds to capture a photo.

MMS sent directly to your phone in case of detection

The GSM module built into the camera allows you to receive MMS from January to March photo detection on phones registered. The SIM card (not supplied) may be the phone company of your choice and type of packages or prepaid card.
For France: Bouygues Telecom Orange or telephone are the only compatible for Switzerland: Sunrise or Orange and Orange Belgium. Sending MMS may ask the camera and set records for daily.

Long battery autonomy

Inside the unit introduced the necessary batteries and its rack extra battery for autonomy up to 6 months in standby mode. (8 AA batteries type LR06 not included).
In case of low battery SMS will be sent to alert you and replace the batteries.
A solar charger with internal battery 1500 mAH gives you a range of up to 1 year in duration standby. (Without detection)

Screen 2.4 "encrypted & Memory

Despite its small size the camera measures 115 x 57 x 30 mm behind the camera, a color screen 2.4 "inches, you can view your recordings, fit the sensor and to configure the device.
The device configuration is quick and easy. For added security, you can access your data with a password that encrypts your files.

You can upload photos of our raw XTC CAMERA 12M by clicking on the following image:


 Capteur 5 / 12 Mégapixels CMOS
 Résolution d’image 12 M : 4000 x 3000 pixels
5 M : 2560x1920 pixels
 Résolution Vidéo 640 x 480 à 20/IPS
320 x 240 à 20/IPS
WVGA: 848 x 480 à 60/IPS
 Format vidéo .AVI
 Format Photo .JPG
 Écran 2.36 pouces TFT LCD
 Sortie vidéo  NTSC
 Infrarouge jusqu'à 20 mètres de portée
 Angle de vue 52° F=3.1
 Angle des capteurs PIR 100° / 35° / 100°
 Sensibilité des capteurs PIR 3 niveaux de sensibilité ( haut / normal / bas )
 Distance de détection des capteurs PIR Jusqu’à 20 m en dessous de 25°C en mode normal
 Mode d’enregistrement Jour «couleur» et nuit «noir et blanc»
 Stockage Carte SDHC jusqu’à 32 Go
 Temps de déclenchement 1.2 seconde   0.8 seconde
 Nombres de prises photo  1~3
 Longueur des vidéos 1~120sec. programmable
 Prise photo périodique 1 second ~24 heures
Photo + vidéo Prise photo en 1er puis vidéo
Mot de passe 4 chiffres / digital
Intervalle de temps - On/Off
- 1 Seconde ~ 24 Heures
- Programmable
MMS Statut - VGA = 640x480; QVGA = 320x240;SMS;
- Programmable
MMS numéro “0” Illimité; 0~99/jour
MMS n° téléphone 0 ~3 numéro de téléphone
MMS - E-mail 0 ~3 adresse e-mail
Max. envoi SMS 1~3
Alerte SMS “batterie faible” oui, “Battery Low”
Alimentation externe DC 4.0x1.7 6 ~ 12V (1 ~ 2A)
Auto power off Mise hors tension automatique en 2 minutes, si aucune
saisie de touche
Autonomie 3 ~6 mois en stand-by conso. 0.4mA
Batterie 4 / 8 piles LR06 AA
Avertissement batterie faible 4.2~4.3V
Consommation Stand-by 0.4 mA
Consommation 150mA (+350mA avec IR)
Connexion USB 2.0
Dimensions 115 X 57 X 30 mm
Température de fonctionnement -30~+70°C
Humidité de fonctionnement 5%~95%
Waterproof norme IP54
Fixations sangles, piédestal
Certification FCC & CE & ROHS
Tension de sortie  7 Volt
Tension de sortie maximum  800 mA
Puissance du panneau solaire  0.4 W
Batterie interne lithium polymère 1500 mAH
Chargement USB
Temps de chargement 5 heures
Dimension 120 x 75 x 15 mm
Poids 150 g
Dimensions du boitier de protection 150 x 70 x 100 mm (hxLxl)
Dimension du câble de sécurité 1800 mm
Diamêtre du câble de sécurité  8 mm
