Référence : TX-RX-100PTZ

Kit émetteur récepteur numérique 2.4 Ghz "Sans interférence"

Short description :

  • Kit transceiver digital audio / video
  • Digital transmission "non-interference" & data encryption
  • Anti-interference: Wireless / Bluetooth / Micro Wave / Wireless Network
  • Power 100 mW for maximum range of 150 meters "without hindrance"
  • Maximum resolution 720 x 576 @ 25 fps
  • MPEG 4 video compression
  • Log stereo audio / video / RS485 (PTZ protocol)
  • Data rates up to 12 Mbps

Description

Transmission "FREE INTERFERENCE"

This kit transmitter / receiver Wireless digital 2.4 GHz, allows you to transmit a video signal, audio (stereo) and RS485 (PTZ camera control from a distance) by the digital wave.
The 2.4 GHz digital microwave are therefore anti-interference Waves: WiFi, Bluetooth, Radio, Wireless does not are altering the image transmitted by the camera.

Up to 150 meters range

View and control your wireless camera up to 150 meters range "without obtacle". Thanks to these omni-directional antennas and frequency in 2.4 GHz digital.

Control (PTZ), listening and viewing distance

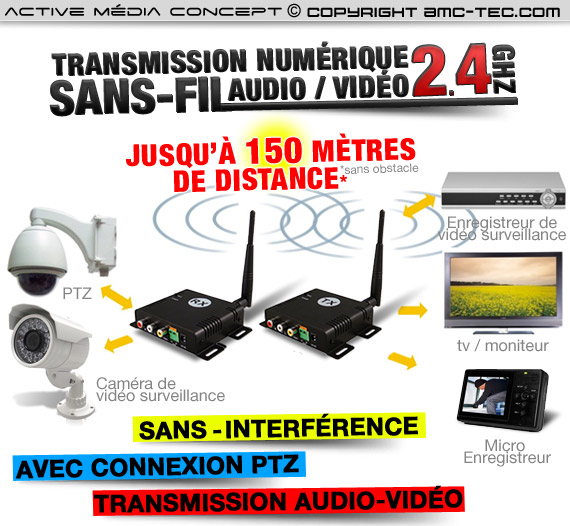

Connect your video surveillance camera, camcorder ... or even your camera PTZ (pan, tilt, zoom).
Because the connection proposed by this kit offers digital transceiver to transmit video, audio (stereo) and the RS 485.

Multi & Resolution

Plug the receiver on a monitor, a television, a video surveillance recorder (with or without RS 485) a micro recorder or any other sources for receiving audio / video.
The RS 485 lets you control the PTZ camera under the Pelco-D, Pelco-P.

The Multi émetteur and receiver connection is possible because each receiver émetteur and partners with a unique ID.
Maximum resolution is passed at 720 x 576 pixels at 25 frames per second per channel connected with a MPEG 4 video compression at a rate of 12 Mbps.

Caractéristiques

   Récepteur  Transmetteur
 Entrée Video Non Composite
 Sortie Vidéo  Composite Non
 Format Vidéo  NTSC / PAL
 Compression vidéo  MPEG 4
 Résolution d'image par canal  720x480 pixels @ 30ips (NTSC)
720 x 576 pixels @ 25 ips (PAL)
 Port Audio Vidéo  Sortie, Vidéo x 1, Audio x 2 (stéréo)   Entrée, Vidéo x 1, Audio x 2 (stéréo)
 RS485   Contrôle des caméra PTZ avec le protocole PELCO-D et PELCO-P
 Fréquence Utilisée  2.4 ~ 2.483 Ghz
 Débits de données    jusqu'à 12 Mbps
 Modulation  16QAM, QPSK, BPSK
 Sensibilité récepteur  - 85 DBm non
 PA Puissance de sortie  100mw
 Antenne   Omni-directionnel 3dBi
 Distance de transmission  Jusqu'à 150 mètres ( sans obstacle)
 Alimentation  DC 12V 1A DC 12V 1A
 Consommation  0.5 A 0.5 A
Température utilisation -20 ~ + 80 ° C
Dimensions  80 x 90 mm   80 x 90 mm
